MC1489 QUAD LINE RECEIVER

DESCRIPTION The MC1489 monolithic quad line receivers are designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard N° RS232C.

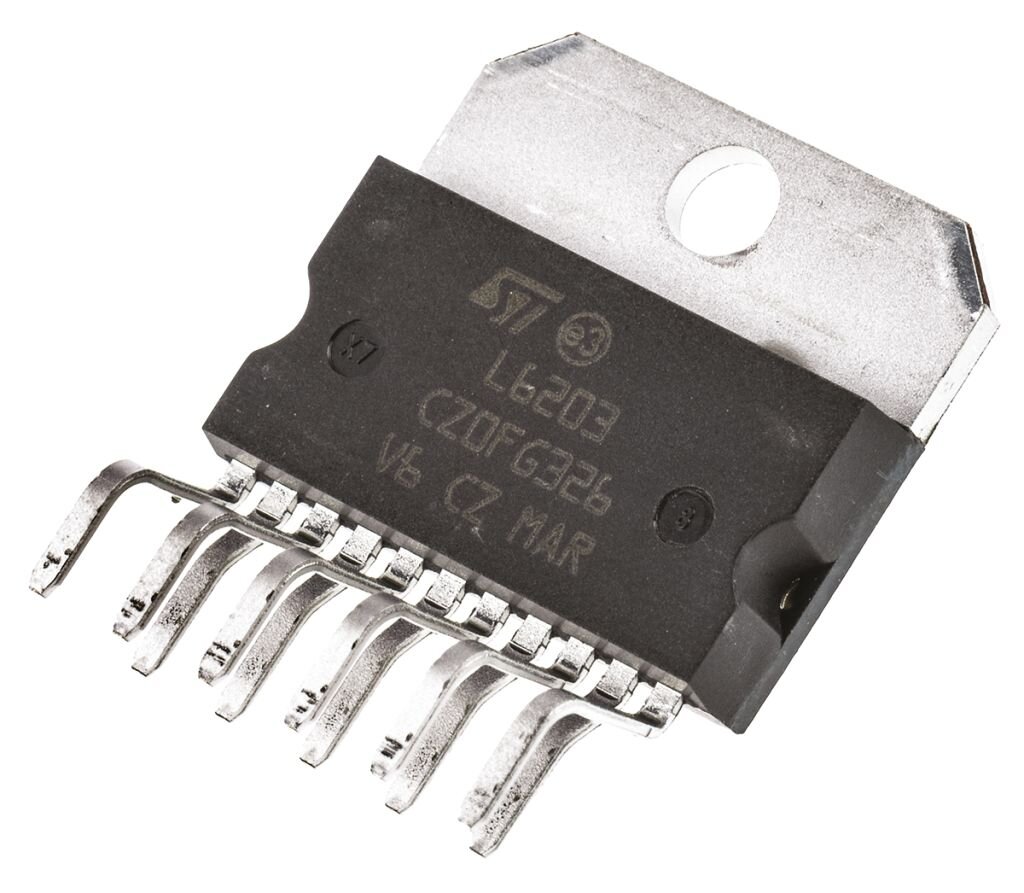

L6203 H-BRIDGE MOTOR CONTROLER.2-CHANNEL/4A/

LM324AN 4CHAN OP-AMPL
LM324AN Op Amp Quad Low Power Amplifier ±15V/30V 14-Pin

Technical
Bandwidth 1.3 MHz
Common Mode Rejection Ratio 70 dB
Gain Bandwidth Product 1.3 MHz
Input Bias Current 100 nA
Input Offset Voltage (Vos) 3 mV
Max Dual Supply Voltage 15 V
Max Input Voltage 28.5 V
Max Operating Temperature 70 °C
Max Supply Voltage 30 V
Min Dual Supply Voltage 1.5 V
Min Input Voltage 0 V
Min Operating Temperature 0 °C
Min Supply Voltage 3 V
Nominal Supply Current 1.2 mA
Number of Amplifiers 4
Number of Channels 4
Number of Circuits 4
Number of Elements 4
Operating Supply Current 1.5 mA
Operating Supply Voltage 15 V
Output Current 40 mA
Output Current per Channel 70 mA
Power Dissipation 500 mW
Schedule B 8542330000
Slew Rate 0.4 V/µs
Voltage Gain 100 dB

LM335 PRECISION TEMPERATURE SENSOR
LM335 is a low cost temperature sensor and gives highly precised results. It operates as a two terminal zener diode. It has low dynamic impedance less than 1 ohms. It has a large range for temperature i.e. -40 degree Celsius to 100 degree Celsius. At 10mV/K its breakdown voltage becomes directly proportional to its absolute temperature. large temperature ranges, initial accuracy up to 1 degree Celsius and low dynamic impedance are its major and unique features. It can be used in HVAC, home appliances, power supplies etc. LM-335 is shown in the figure given below

LM358 AP Operational amplifier

LM555 LM/NE555 TIMER IC

LM555 - Timer IC 8PIN
Frequency: 500kHz
Supply voltage: 4.5...16V DC
Case: DIP8
DC supplying current: 10mA
Output current: 200mA

Features:

Accurate Timing From Microseconds Through Hours
Astable and Monostable Operation
Adjustable Duty Cycle
Output Capable of Sourcing or Sinking up to 200mA
Output Capable of Driving TTL Devices
Normally ON and OFF Outputs
High Temperature Stability . . . . . . . . . . . . . . 0.005%/oC

UA741CP/LM741 LM741 OP-AMP

IC UA741CP/UA741 op amp LM741 DIP8

LM747 Dual Operational Amplifier

LM747 – Dual Operational Amplifier IC 14PIN
LM747 is a general purpose dual operational amplifier IC and is a member of ‘LM xx’ family. The ‘LM xx’ series are integrated circuits designed by National Semiconductor. The prefix LM stands for linear monolithic, referring to the analog components integrated onto a single piece of silicon. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. The chip is short circuit protected and the internal frequency compensation ensures stability without external components.

KTY81-110 PRECISION TEMPERATURE SENSOR

KTY81-110 temperature sensor; -55÷150°C; SOD70; THT; 990Ω

LM358ADT Operational amplifier; SMD/ SO8

NE555DR-SMD TIMER STABLE/MONOSTABLE SO8/SMD

MC1310 FM STEREO DECODER
A290D (MC1310, HA12003) PLL stereo decoder multiplex DIP14

MC1458 Dual Operational Amplifier
MC1458 TEXAS Dual Operational Amplifier DIP-8

Manufacturer: TEXAS INSTRUMENTS
Integrated circuit type: operational amplifier
Transmission band frequency: 1.1MHz
Mounting: THT
Number of channels: 2
Case DIP8

MC1488(DS1488) RS-232 LINE DRIVER

National DS1488J Quad RS-232C Line Driver, CDIP, MC1488, MC1488L

MC4558 (RC4558) Dual Operational Amplifier
MC4558 is a high-performance monolithic dual operational amplifier. The circuit combines all the outstanding features of the MC1458 and, in addition, possesses three times the unity-gain bandwidth of the industry standard. The IC is constructed using gated P-channel MOSFET at the input; so, as to provide a very high input impedance. The IC has a wide range of working voltages and directly interfaces with both passive and active electronic components; making it ideal to be used with any device. 8-pin

MCP3008 A/D CONVERTER 10 Ch 10BIT

MCP3008 8-Channel 10-Bit 200ksps,2,7-5,5v,ADC with SPI Interface. DIP16

RC4558P OPERATIONAL APLIFIER 3Mhz 2CH

DIP8

RC4559P Dual High-Perform Operational Amplifier

ULN2002 DARLINGTON ARRAY

ULN2002 Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA - - Through Hole 16-DIP
• Output current 500 mA per driver (600 mA peak)
• Output voltage 50 V
• Integrated suppression diodes for inductive loads
• Outputs can be paralleled for higher current
• TTL/CMOS/PMOS/DTL compatible inputs
• Inputs pinned opposite outputs to simplify layout

ULN2003A DARLINGTON ARRAY IC

ULN2003A Motorola 16 PIN DIP Darlington TRANSITOR Array

ULN2803A 8 CHANNEL NPN DARLINGTON DRIVER

ULN2004A DARLINGTON ARRAY IC

ULN2004A Trans Array 7xNPN 16PIN
A high current Darlington array containing seven open collector Darlington pairs with common emitters. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. Useful for driving a wide range of loads including solenoids, relays DC motors, LED displays, filament lamps, thermal print heads and high power buffers.

Darlington transistor array
7x Drivers
CMOS
PMOS Input compatibility
600mA Peak output current
50V Output voltage
50V Switching voltage
0.25us Delay time
Working temperature -20°C to +85°C
DIL-16 Case
High voltage

ULN2003D-SMD SMD DARLINGTON ARRAY

ULN2003 ARRAY-7 NPN Darlington Transistors SMD SO16
- Manufacturer: ST MICROELECTRONICS
- Type of integrated circuit: driver
- Kind of integrated circuit: darlington, transistor array
- Output current: 0.5A
- Output voltage: 50V
- Number of channels: 7
- Mounting: SMD
- Operating temperature: -20...70°C
Input voltage: 30V
- Case: SO16

ULN2004D-SMD ULN200DD1013TR-SMD driver/Darlington Transistor array

LNL304PN STEP DOWN SW IC

LNK304PN IC - Power Integrations - AC-DC Off Line Switcher IC

LNK305GN AC/DC Converters

AC/DC Converters 175mA MDCM 280mA CCM
Very low power AC-DC, Non-Isolated passive power supply replacements.
700 V Internal MOSFET Rating
Self-Powered
ON/OFF Control
Hysteretic Thermal Shutdown
Power Limiting
Frequency Jitter Reduces EMI
EcoSmart Low Standby/No-load Power Consumption

LNK364GN SMD Off Line Switcher, 9W
Power Integrations LNK364GN Link Switch, Off Line Switcher, 9W 7-Pin, PDIP SMD.

LNK364PN AC/DC SWITCHER SMPS CONTROL IC 8PIN

Power Integrations LNK364GN Link Switch, Off Line Switcher, 9W 7-Pin, PDIP SMD.

MAX3085CSA+ RS422/RS485 HALF DOUBLEX

MAX3085CSA+

interface; transceiver; half duplex,RS422,RS485; 500kbps; SO8

Manufacturer:MAXIM INTEGRATED

Type of integrated circuit:interface

Kind of integrated circuit:transceiver

Transmission rate:500kbps

Mounting:SMD

Case:SO8

Supply voltage:5V

Number of receivers:1

Number of transmitters:1

Operating temperature:0...70°C

DC supply current:1mA

Interface:half duplex
RS422
RS485

DAC0800 8-Bit Digital to Analog D/A Converter

8-Bit Digital to Analog D/A Converter IC DIP-16 Package
The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible.

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the non linearities of better than ±0.1% over temperature minimizes system error accumulations.

The noise immune inputs will accept a variety of logic levels. The performance and characteristics of the device are essentially unchanged over the ±4.5V to ±18V power supply range and power consumption at only 33 mW with ±5V supplies is independent of logic input levels.

The DAC0800 is a direct replacement for the DAC-08, DAC-08A, DAC-08C, and DAC-08H, respectively.

UC3842 SMD IC

UC3842BD1 IC: PMIC; PWM controller; 1A; 48÷500kHz; Channels: 1;
SO8

UC3842-SMD PMIC/PWM controller; 1A; 48÷500kHz;/ SO8

UC3842-SMD-SO14 UC3842DTR /SO14 PMIC/PWM controller

SP232ECN-L RS232 INTERFACE IC

SP232ECN-L RS232 SMD INTERFACE/TRANCEIVER V28/120Kbps

16NSOIC

TNY278PN AC/DC Power management integrated circuit

TNY278PN PMIC; AC/DC switcher, SMPS controller; Uin: 85÷265V; DIP-8B; 16W

TNY278GN AC/DC offline switch

TNY 278GN AC/DC offline switch, 85-265 VAC, 28W, SMD-8B-7

TOP256YN SMPS CONTROLLER 59-145KHz AC/DC SWITCHER TO220-7C

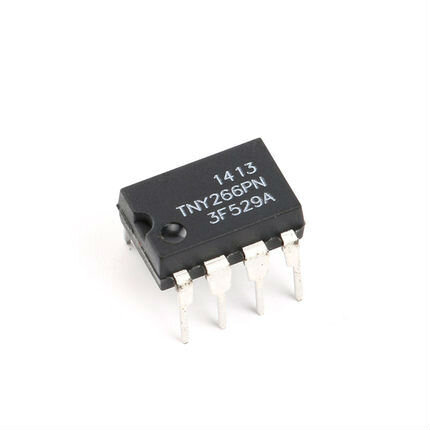

TNY266PN AC/DC
Power management integrated circuits(PMIC)AC/DC switcher, SMPS controller;

Uin: 85÷265V; DIP-8B; 10W

TOP256PN SMPS CONTROLLER 59.4-72.6KHZ DIP-8C

TDE1798DP INTELLIGENT IC

TDE1798DP INTELLIGENT POWER SWITCH 500mA IC 8PIN
6V UP TO 35V

TL494CD SMD SO16 , PMIC/PWM controller

TJ1055T/C.518 SMD TRANCEIVER 4.75-5.25VDC
